KS 阶梯封
KS 阶梯封
性能及用途KS 阶梯封是由PTFE滑环和O型圈弹性体配合使用的组合密封，O型圈作为弹性体能提供足够的密封预紧力，并
对PTFE滑环的磨损起补偿作用。PTFE材料摩擦系数小，耐磨损性能极佳，PTFE滑环特殊设计的几何尺寸，使其
具有良好的抗挤出性能，同时KS阶梯封对残余油膜有“泵回吸”的作用，能有效地抑制在串联密封配置中出现的“困压”
现象。KS阶梯封特别适用于工程机械液压油缸、控制油缸、伺服系统、机床、快速响应油缸等。
优点
--静态和动态密封效果好
--抗挤出性能优越
--起动和运动摩擦力小
--起动无爬行，无粘滞
--耐磨损，可靠性高
--耐高温，耐介质范围广（取决于所选O型圈的材料）
--结构简单，便于安装
材料
标准用途
密封体：填充聚四氟乙烯 材料代码： T605
O型圈：丁腈橡胶 材料代码：N800
组件代码：T605N
对于高温及耐化学介质的使用工况，O型圈材料推荐使用氟橡胶： F800，组件代码：T605F
对于低温的适用工况，O型圈材料推荐使用耐低温丁腈橡胶：NV705，组件代码： T605NV
技术数据
标准KS阶梯封适用于工程机械液压缸、机床、注射机和压力机等
工作压力：≤40MPa
速度： ≤5m/s
温度：-40℃ to +200℃ (取决于O型圈材质)
介质：液压油、乳化液、水
重要提示：以上数据极限值，不可同时使用。例如：最大工作压力取决于材料类型、压力、温度、间隙等。在实际
使用中由于工作参数的相互影响，最大值设定的相应要低。
安装
沟槽：封闭式；开放式 (对于极限小直径和极限横截面的情况建议采用开放式沟槽)
为了避免密封件损坏，安装时密封件不要通过部件锐边并防止与安装工具锐角接触；必须去除密封件安装区域中的锐
边和毛刺；安装时应避免O型圈扭转。
订货示例
KS 阶梯封
系列号： KS 缸孔直径： d=100mm
订货号：KS10006T605N
KS：系列号
100：缸孔直径
06：沟槽宽度
T605N：材料代码

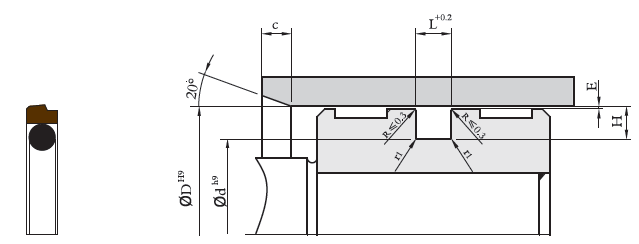

| 安装尺寸 | ||||||||
| 系列号 |
O型圈断面 CS （mm） |
推荐的标准缸径范围 d(mm) |
槽宽 L(mm) |
槽深 H(mm) |
最大间隙 E |
r1 | ||
| ≥ | ≤ | ＜20MPa | 20-40MPa | |||||
| KS | 2.65 | 15 | 25 | 3.2 | 3.65 | 0.20 | 0.15 | 0.5 |
| 3.55 | 20 | 63 | 4.2 | 5.35 | 0.25 | 0.2 | 0.5 | |
| 5.3 | 40 | 195 | 6.3 | 7.55 | 0.3 | 0.25 | 0.9 | |
| 7 | 200 | 250 | 8.1 | 10.25 | 0.4 | 0.3 | 0.9 | |
| 7 | 260 | 630 | 8.1 | 12 | 0.45 | 0.35 | 0.9 | |
| 8.6 | 650 | 900 | 9.5 | 13.65 | 0.5 | 0.4 | 1 | |
| KS 阶梯封 | |||||||
 |
|||||||
| d | d | L | H | C | O 型圈断面 | 订货号 | 注 |
| 18 | 10.7 | 3.2 | 3.65 | 3 | 2.65 | KS01803 | ● |
| 20 | 12.7 | 3.2 | 3.65 | 3 | 2.65 | KS02003 | ● |
| 22 | 14.7 | 3.2 | 3.65 | 3 | 2.65 | KS02203 | ● |
| 25 | 17.7 | 3.2 | 3.65 | 3 | 2.65 | KS02503 | ● |
| 26 | 18.7 | 3.2 | 3.65 | 3 | 2.65 | KS02603 | ● |
| 28 | 17.3 | 4.2 | 5.35 | 6 | 3.55 | KS02804 | ● |
| 30 | 19.3 | 4.2 | 5.35 | 6 | 3.55 | KS03004 | ● |
| 32 | 21.3 | 4.2 | 5.35 | 6 | 3.55 | KS03204 | ● |
| 35 | 24.3 | 4.2 | 5.35 | 6 | 3.55 | KS03504 | ● |
| 38 | 27.3 | 4.2 | 5.35 | 6 | 3.55 | KS03804 | ● |
| 40 | 29.3 | 4.2 | 5.35 | 6 | 3.55 | KS04004 | ● |
| 42 | 31.3 | 4.2 | 5.35 | 6 | 3.55 | KS04204 | ● |
| 45 | 34.3 | 4.2 | 5.35 | 6 | 3.55 | KS04504 | ● |
| 48 | 37.3 | 4.2 | 5.35 | 6 | 3.55 | KS04804 | ● |
| 50 | 39.3 | 4.2 | 5.35 | 6 | 3.55 | KS05004 | ● |
| 52 | 41.3 | 4.2 | 5.35 | 6 | 3.55 | KS05204 | ● |
| 55 | 44.3 | 4.2 | 5.35 | 6 | 3.55 | KS05504 | ● |
| 60 | 44.9 | 6.3 | 7.55 | 8 | 5.3 | KS06006 | ● |
| 63 | 47.9 | 6.3 | 7.55 | 8 | 5.3 | KS06306 | ● |
| 65 | 49.9 | 6.3 | 7.55 | 8 | 5.3 | KS06506 | ● |
| 70 | 54.9 | 6.3 | 7.55 | 8 | 5.3 | KS07006 | ● |
| 72 | 56.9 | 6.3 | 7.55 | 8 | 5.3 | KS07206 | ● |
| 75 | 59.9 | 6.3 | 7.55 | 8 | 5.3 | KS07506 | ● |
| 80 | 64.9 | 6.3 | 7.55 | 8 | 5.3 | KS08006 | ● |
| 85 | 69.9 | 6.3 | 7.55 | 8 | 5.3 | KS08506 | ● |
| 89 | 73.9 | 6.3 | 7.55 | 8 | 5.3 | KS08906 | ● |
| 90 | 74.9 | 6.3 | 7.55 | 8 | 5.3 | KS09006 | ● |
| 100 | 84.9 | 6.3 | 7.55 | 8 | 5.3 | KS10006 | ● |
| 105 | 89.9 | 6.3 | 7.55 | 8 | 5.3 | KS10506 | ● |
| 110 | 94.9 | 6.3 | 7.55 | 8 | 5.3 | KS11006 | ● |
| 115 | 99.9 | 6.3 | 7.55 | 8 | 5.3 | KS11506 | ● |
| 118 | 102.9 | 6.3 | 7.55 | 8 | 5.3 | KS11806 | ● |
| 120 | 104.9 | 6.3 | 7.55 | 8 | 5.3 | KS12006 | ● |
| 125 | 109.9 | 6.3 | 7.55 | 8 | 5.3 | KS12506 | ● |
| 127 | 111.9 | 6.3 | 7.55 | 8 | 5.3 | KS12706 | ● |
| 130 | 114.9 | 6.3 | 7.55 | 8 | 5.3 | KS13006 | ● |
| 140 | 124.9 | 6.3 | 7.55 | 8 | 5.3 | KS14006 | ● |
| 145 | 129.9 | 6.3 | 7.55 | 8 | 5.3 | KS14506 | ● |
| 150 | 134.9 | 6.3 | 7.55 | 8 | 5.3 | KS15006 | ● |
| 155 | 139.9 | 6.3 | 7.55 | 8 | 5.3 | KS15506 | ● |
| 158 | 142.9 | 6.3 | 7.55 | 8 | 5.3 | KS15806 | ● |
| 160 | 144.9 | 6.3 | 7.55 | 8 | 5.3 | KS16006 | ● |
| 165 | 149.9 | 6.3 | 7.55 | 8 | 5.3 | KS16506 | ● |
| 170 | 154.9 | 6.3 | 7.55 | 8 | 5.3 | KS17006 | ● |
| 175 | 159.9 | 6.3 | 7.55 | 8 | 5.3 | KS17506 | ● |
| 180 | 164.9 | 6.3 | 7.55 | 8 | 5.3 | KS18006 | ● |
| 185 | 169.9 | 6.3 | 7.55 | 8 | 5.3 | KS18506 | ● |
| 190 | 174.9 | 6.3 | 7.55 | 8 | 5.3 | KS19006 | ● |
| 195 | 179.9 | 6.3 | 7.55 | 8 | 5.3 | KS19506 | ● |
| 200 | 179.5 | 8.1 | 10.25 | 10 | 7 | KS20008 | ● |
| 205 | 184.5 | 8.1 | 10.25 | 10 | 7 | KS20508 | ● |
| 210 | 189.5 | 8.1 | 10.25 | 10 | 7 | KS21008 | ● |
| 220 | 199.5 | 8.1 | 10.25 | 10 | 7 | KS22008 | ● |
| 225 | 204.5 | 8.1 | 10.25 | 10 | 7 | KS22508 | ● |
| 230 | 209.5 | 8.1 | 10.25 | 10 | 7 | KS23008 | ● |
| 235 | 214.5 | 8.1 | 10.25 | 10 | 7 | KS23508 | ● |
| 240 | 219.5 | 8.1 | 10.25 | 10 | 7 | KS24008 | ● |
| 250 | 229.5 | 8.1 | 10.25 | 10 | 7 | KS25008 | ● |
| 255 | 234.9 | 8.1 | 10.25 | 10 | 7 | KS25508 | ● |
| 260 | 236.0 | 8.1 | 12 | 12 | 7 | KS23008 | ● |
| 270 | 246.0 | 8.1 | 12 | 12 | 7 | KS27008 | ● |
| 280 | 256.0 | 8.1 | 12 | 12 | 7 | KS28008 | ● |
| 290 | 266.0 | 8.1 | 12 | 12 | 7 | KS29008 | ● |
| 300 | 276.0 | 8.1 | 12 | 12 | 7 | KS30008 | ● |
| 310 | 286.0 | 8.1 | 12 | 12 | 7 | KS31008 | ● |
| 320 | 296.0 | 8.1 | 12 | 12 | 7 | KS32008 | ● |
| 330 | 306.0 | 8.1 | 12 | 12 | 7 | KS33008 | ● |
| 340 | 316.0 | 8.1 | 12 | 12 | 7 | KS34008 | ● |
| 350 | 326.0 | 8.1 | 12 | 12 | 7 | KS35008 | ● |
| 360 | 336.0 | 8.1 | 12 | 12 | 7 | KS36008 | ● |
| 370 | 346.0 | 8.1 | 12 | 12 | 7 | KS37008 | ● |
| 380 | 356.0 | 8.1 | 12 | 12 | 7 | KS38008 | ● |
| 390 | 366.0 | 8.1 | 12 | 12 | 7 | KS39008 | ● |
| 400 | 376.0 | 8.1 | 12 | 12 | 7 | KS40008 | ● |
| 410 | 386.0 | 8.1 | 12 | 12 | 7 | KS41008 | ● |
| 420 | 396.0 | 8.1 | 12 | 12 | 7 | KS42008 | ● |
| 430 | 406.0 | 8.1 | 12 | 12 | 7 | KS43008 | ● |
| 440 | 416.0 | 8.1 | 12 | 12 | 7 | KS44008 | ● |
| 450 | 426.0 | 8.1 | 12 | 12 | 7 | KS45008 | ● |
| 460 | 436.0 | 8.1 | 12 | 12 | 7 | KS46008 | ● |
| 470 | 446.0 | 8.1 | 12 | 12 | 7 | KS47008 | ● |
| 480 | 456.0 | 8.1 | 12 | 12 | 7 | KS48008 | ● |
| 500 | 476.0 | 8.1 | 12 | 12 | 7 | KS50008 | ● |
| 520 | 499.5 | 8.1 | 12 | 12 | 7 | KS52008 | ● |
| 540 | 516.0 | 8.1 | 12 | 12 | 7 | KS54008 | ● |
| 600 | 576.0 | 8.1 | 12 | 12 | 7 | KS60008 | ● |
| 650 | 626 | 8.1 | 12 | 15 | 7 | KS65008 | ● |
| 710 | 682.7 | 9.5 | 13.65 | 15 | 8.6 | KS71009 | ● |
| 750 | 722.7 | 9.5 | 13.65 | 15 | 8.6 | KS75009 | ● |
| 800 | 772.7 | 9.5 | 13.65 | 15 | 8.6 | KS80009 | ● |
| 900 | 872.7 | 9.5 | 13.65 | 15 | 8.6 | KS90009 | ● |
|
注： 1. “●” 有模具在制品； 2. “○” 可加工定制； 如有特殊材质要求或更多尺寸要求请联系我们。 |
|||||||
